Fully autonomous high-precision operation
Obstacle avoidance radar
20L effective capacity
Aero engine
IP65 waterproof
Dual FPV real-time monitoring

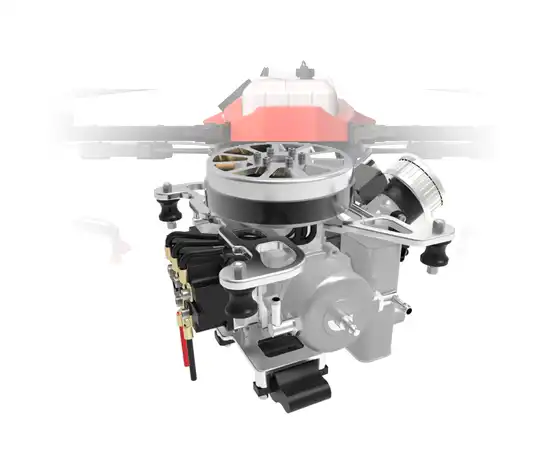

6.5KW engine, excellent performance;
Aerospace level of generator;
Original ECU EFI technology.
The service life is up to 1000 hours, and the cumulative operating area can reach 2400 ha.

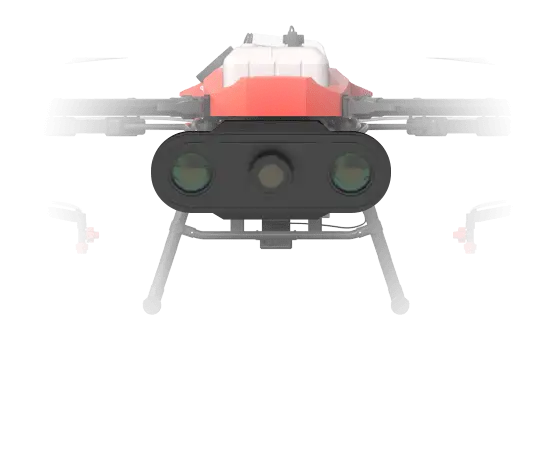

The Oil-20 is equipped with 120° FPV real-time wide-angle cameras at the front and rear, which meets the needs of operation visualization. Equipped with two high-brightness LED searchlights, it is convenient for night work; it is also equipped with an obstacle sensing module, which can predict the obstacles ahead and ensure your flight safety.

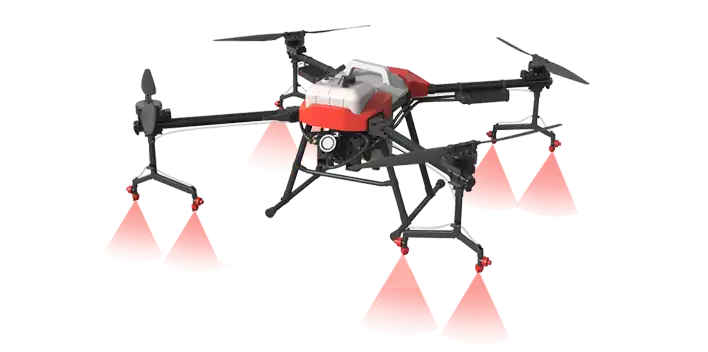

Oil-20 adopts the design of eight nozzles and four water pumps. The flow rate of a single water pump can reach 8L/min, and the overall spraying is more uniform.

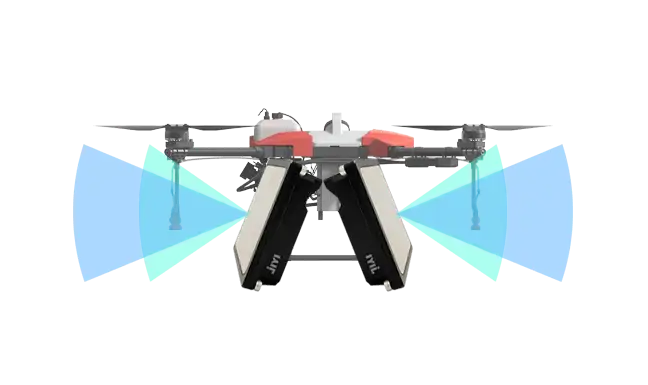

Oil-20 adopts front and rear obstacle avoidance radar, can fly autonomously without turning it's head. It makes the flight safer.

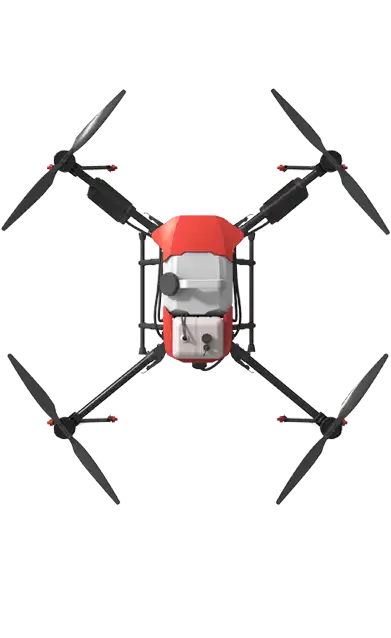

The wrap around folding structure can minimize the volume of the fuselage after folding, which is convenient for transportation and transition.

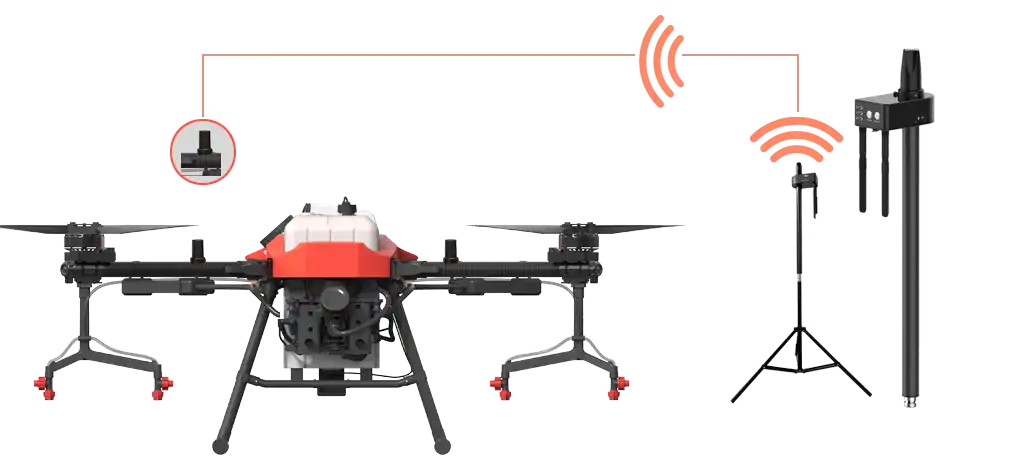

The RTK installed on the Oil-20 has centimeter-level positioning capabilities, providing more accurate positioning and safety guarantees for aerial defense operations.
Wheelbase: 1700mm
Product size: 1930×1830×620 mm (with arms extended, blades extended)
1350×1350×620mm (the arm is unfolded, the blade is folded)
820×800×620mm (the arm is folded)
Total weight of the whole machine: (not including battery) 35.8 kg
Standard take-off weight: 40.8 kg
Maximum take-off weight:54.2 kg (horizontal)
Hovering accuracy: (Good GNSS signal)
J-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm
J-RTK not enabled: horizontal ±0.6m, vertical ±0.3 m (Radars enabled: ±0.1 m)
Fuel tank capacity: 5L
Maximum power: 6500 W
Flight duration: 60 min (no load)
11 min (full load)
Maximum working flight speed: 7 m/s
Maximum flight speed: 10m/s
Maximum wind resistance: 8 m/s
Maximum flight altitude: 2000 m
Recommended working temperature: 0°C ~ 40°C
JIYI is the global professional drone solution provider for drones. If you need drones, then you need us.
