K3APro flight controller is specially designed for agricultural sprayer drones. It has a variety of modes and exclusive functions for agriculture sprayer drones. It supports manual, semi-autonomous and autonomous flight. It can monitor pesticide flow in real time and intelligently match the spray volume to achieve precise spraying . Equipped with professional ground control station, it is efficient and easy to operate.

Diverse Operating Mode for a Variety of Operating Environments.

K3APro built-in attitude-stabilization/height mode, GPS-speed mode and other control modes, easy to operate, flexible switching, free to change operating modes according to different operating environments, to meet the needs of agriculture spraying requirements.

Stable and Reliable Performance

K3APro is a new upgraded version of K3-A, the best-selling king of flight controller in the last three years. The reliability and stability of K3APro have been further improved and optimized on the basis of the original K3-A flight controller. From 2017 to 2018, K3A was used and recognized by 70% of domestic plant protection manufacturers, covering plant protection drone users in Asia, America, Europe, Oceania and other countries around the world.
Excellent Fixed Height Mode
Straight Route
More than tens of thousands of Shipment
Wide range of use
Perfect Stability

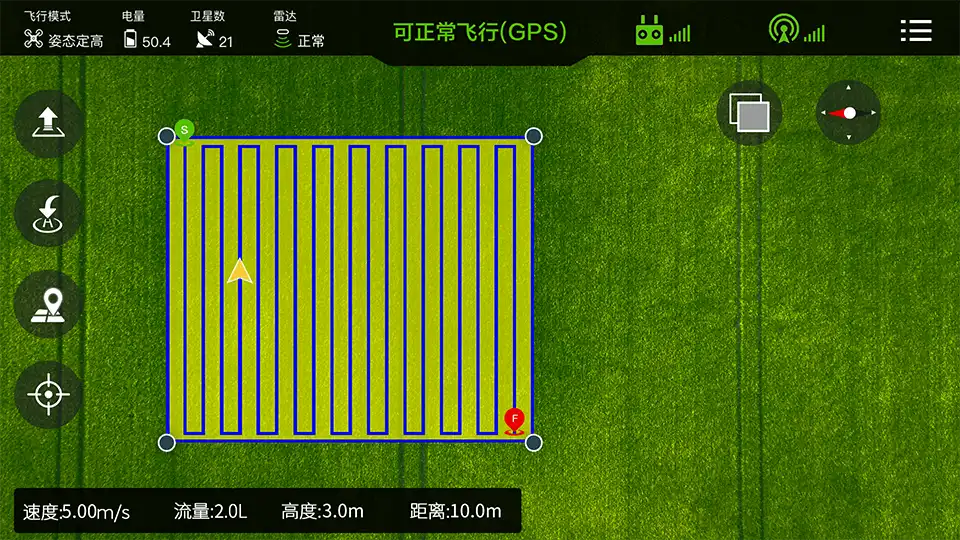

Equipped with exclusive agricultural App, precise and convenient control.

Personalized app tailored for agricultural sprayer drones, it can provide arbitrary polygon route for unregulated terrain, autonomous operation and improve work efficiency. It has a route memory function and can calculate the spray area, which helps the operator to grasp the dosage more accurately.

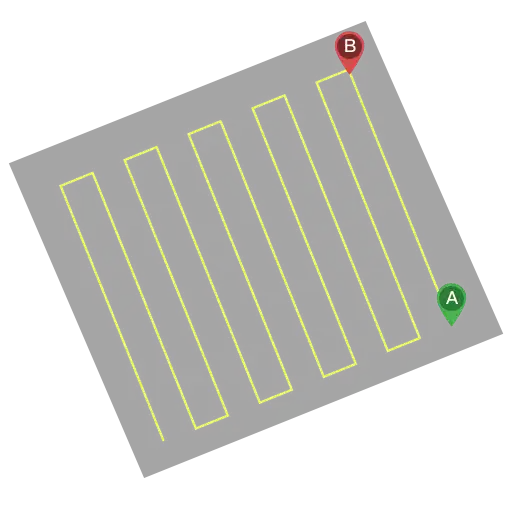

With the ABT feature, spraying work more efficiently.

Set the line and angle of A and B points through the remote, and the pesticides will be sprayed in a straight line, which is efficient and convenient.

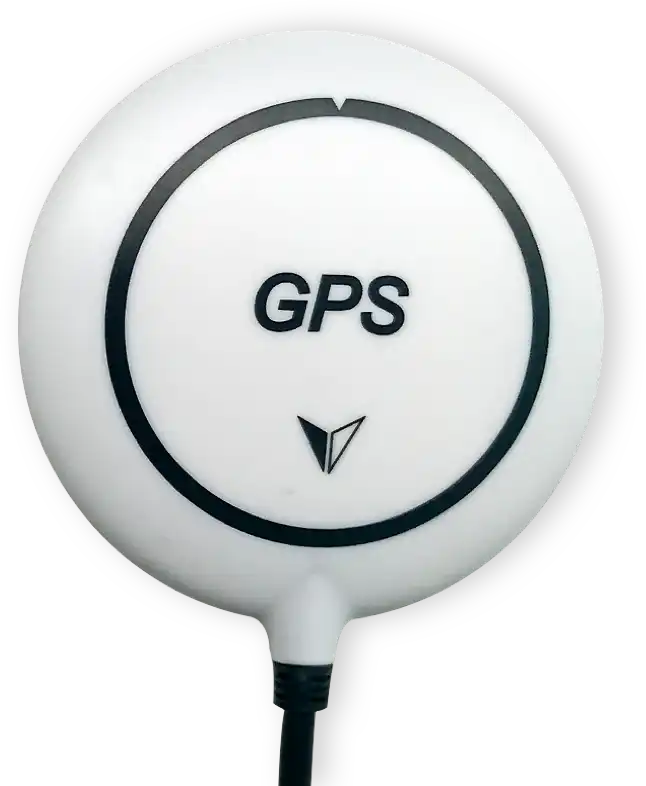

Standard dual GNSS module, more safety of flight.

Dual GNSS magnetic compass configuration realizes greater redundancy of heading positioning control and ensures safe, stable and reliable flight.

Product Parameters Flight Performance
Supported frame types quadrotor(+ type, X type) Hover accuracy horizontal: ±2m
hexacopter(+type, X type, IY type, YI type coaxial sculls) vertical: ±0.8M
octocopter (+type, X type, V type)
Supported ESC types ESC below 490HZ PWM Maximum tilt angle 30 °
Maximum Output Channel 8 Channels Maximum yaw speed 150°/s
Recommend remote type with SBUS receiver Maximum vertical speed 6 m/s
Supported receiver types PPM, S-BUS receiver Wind resistance Continuous wind: level 3
Supported peripherals Radar, RTK, Data link, Flow Sensor Module Gust: Level 4
Working Voltage 2-12S Flight mode and features Attitude-stabilization mode, attitude-fixed altitude mode, GPS-speed mode, GPS-angle mode, AB operation mode, automatic return mode, out-of-control return, low voltage alarm protection, breakpoint continuous spray function, one-button traverse function, Water pump control function, terrain following function, emergency stop function, GPS speed switching function, support digital transmission ground station flight, support digital transmission remote parameter adjustment
Power dissipation Less than 2W
Working temperature: 0-60°
Storage temperature -40-60°
Seismic rating <1G< /td>
Hardware Specification
Weight Flight controller 56g
GPS 45g
LED 13g
PMU 39g
Dimension Flight controller 53.5 × 40.0 × 21.0 mm
GPS Φ63.0 x 15.0 mm
LED 24.0 × 24.0 × 8.0 mm
PMU 53.5 × 34.5 × 14.5 mm

Product Parameters

Supported frame types

Quadrotor(+ type, X type)

Six Rotor(+type, X type, IY type, YI type coaxial sculls )

Eight Rotors (+type, X type, V type)

Supported ESC Types

ESC below 490HZ PWM

Maximum Output Channel

8 Channels

Recommend remote type

with SBUS receiver

Supported receiver types

PPM, S-BUS receiver

Supported peripherals

Radar, RTK, Data link, Flow Sensor Module

Working Voltage

2-12S

Power dissipation

Less than 2W

Working temperature:

0-60°

Storage temperature

-40-60度

Seismic rating

<1G

Flight Performance

Hover accuracy

horizontal: ±2M

vertical: ±0.8M

Maximum tilt angle

30 °

Maximum yaw speed

150°/s

Maximum vertical speed

6 m/s

Wind resistance

Continuous wind: level 3

Gust: Level 4

Flight mode and features

Attitude-stabilization mode, attitude-fixed altitude mode, GPS-speed mode, GPS-angle mode, AB operation mode, automatic return mode, out-of-control return, low voltage alarm protection, breakpoint continuous spray function, one-button traverse function, Water pump control function, terrain following function, emergency stop function, GPS speed switching function, support digital transmission ground station flight, support digital transmission remote parameter adjustment

Hardware Specification

Weight

Flight controller 56g

GPS 45g

LED 13g

PMU 39g

Dimension

Flight controller 53.5 × 40.0 × 21.0 mm

GPS Φ63.0 x 15.0 mm

LED 24.0 × 24.0 × 8.0 mm

PMU 53.5 × 34.5 × 14.5 mm
