K++Pro combines the advantages of classic flight control K++ algorithm and redundant redundant control system, and integrates RTK, power module and 4G network module. It is small in size, large in function and easy to install, which greatly improves the production efficiency and the convenience of after-sales service.
The flight accuracy of the route is increased by 25%.
The vertical control accuracy is increased by 20%.
The trajectory is more precise and the flight is smoother.

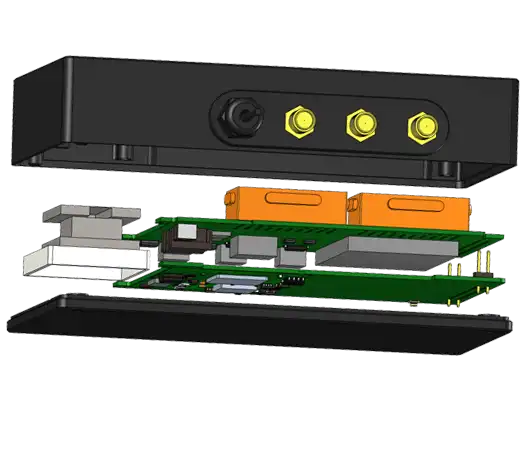

Double shock-absorbing structure design to cope with various complex vibration effects.
The frame has strong anti-aging ability and reduces after-sales maintenance investment.
Triple redundant IMU.
Dual redundant barometers.
More safety !
Motor noise is 3 times smaller than the previous generation.
Power saving 5%~15%.
Much less flying noise.
Industrial grade sensor.
IMU is calibrated just once and used for a lifetime.
Attitude control stability doubled.
Much better wind resistance.
More powerful processing.
Support up to 1000Hz ESC control.
The controller supports a backup power port.
More reliable power supply.
The volume parameters of K++Pro are: length 124mm, width 67.2mm, height 26mm, small in size. In line with the trend of modular design, it is convenient for installation, and at the same time makes it easy to troubleshoot after-sales. Manufacturers can realize remote after-sales and reduce the cost of after-sales.
In order to meet the special requirements of plant protection operations, K++Pro has considered high-standard waterproof performance from the beginning of the design, so as to make the aircraft more stable and safer in plant protection operations.
The integrated wiring harness lowers the installation threshold, and at the same time makes the design of the whole machine more concise and more beautiful.
| Product Parameters | Flight Performance | ||
|---|---|---|---|
| Supported frame types | Quadcopter (+ type, X type) | Hover accuracy | Horizontal ±1.5m |
| Hexacopter (+ type, X type, Y type coaxial twin propellers) | Vertical ±0.5m | ||
| Octocopter (+ type, X type, V type) | |||
| Supported ESC types | ESC below 490HZ PWM | Maximum tilt angle | 30 degrees |
| Maximum output channels | 8 channels | Maximum yaw speed | 150 degrees/sec |
| Suggested remote control type | SBUS receiver | Maximum vertical speed | 6 m/s |
| Supported receiver types | PPM, S-BUS receiver | Wind resistance | Continuous wind: level 4 |
| Supported peripherals | RTK, K-BOX, IOT, obstacle avoidance radar, terrain following radar, integrated remote transmitter, FPV camera, binocular vision sensor, flow meter, liquid level meter, etc. | Gust: Level 5 | |
| Lipo battery types | 2-12S | Flight modes and functions | Attitude mode, GPS mode, ABT operation, autonomous operation, one-button return, out of control protection, out of control to continue operation, low voltage protection, drug out protection function, precision spraying, fence function, log storage function, landing lock function, forbidden Fly zone function, vibration protection function, star loss protection function, active noise reduction function, motor sequence detection function, direction detection function, dual water pump mode, water pump switch control, water pump linkage control |
| Power dissipation | <5W | ||
| Working temperature | -10~60℃ | ||
| Storage temperature | -25~60℃ | ||
| Seismic rating | <1G< /td> | ||
| Hardware specifications | |||
| Weight | Total net weight: 321g | ||
| FC: 87g | |||
| PMU: 41g | |||
| PMU2(UPS): 44g | |||
Product Parameters
Supported frame types
Quadcopter (+ type, X type)
Hexacopter (+ type, X type, Y type coaxial sculls)
Octocopter (+ type, X type, V type)
Supported ESC types
ESC below 490HZ PWM
Maximum output channels
8 channels
Suggested remote control type
SBUS receiver
Supported receiver types
PPM, S-BUS receiver
Supported peripherals
RTK, K-BOX, IOT, obstacle avoidance radar, terrain following radar, integrated remote transmitter, FPV camera, binocular vision sensor, flow meter, liquid level meter, etc.
Lipo battery types
2-12S
Power dissipation
<5W
Working temperature
-10~60℃
Storage temperature
-25~60℃
Seismic rating
<1G
Flight Performance
Hover accuracy
Horizontal ±1.5m
Vertical ±0.5m
Maximum tilt angle
30 degrees
Maximum yaw speed
150 degrees/sec
Maximum vertical speed
6 m/s
Wind resistance
Continuous wind: level 4
Gust: Level 5
Flight modes and functions
Attitude mode, GPS mode, ABT operation, autonomous operation, one-button return, out of control protection, out of control to continue operation, low voltage protection, drug out protection function, precision spraying, fence function, log storage function, landing lock function, forbidden Fly zone function, vibration protection function, star loss protection function, active noise reduction function, motor sequence detection function, direction detection function, dual water pump mode, water pump switch control, water pump linkage control
Hardware specifications
Weight
Total net weight: 321g
FC: 87g
PMU: 41g
PMU2(UPS): 44g
