The P3 flight control system is specially designed for small multi-rotors such as model aircrafts, power line inspection aircrafts, education and training aircrafts, etc. Contains the main controller, LED module, power management module (PMU) and a GPS module. It integrates Jiyi's intelligent algorithms which was developed for many years and adds a variety of flight modes, which is stable, safe and reliable.

p3 product picture

Support more peripherals

More application scenarios

Model airplane scene
Model aircrafts

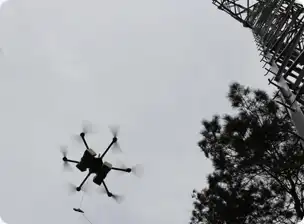

Electricity wiring scene
Power line inspection
Education and training scene
Education and training

P3 Flight Controller Parameters

Supported frame types

I4, X4 type quadrotor

IY6, Y6, I6, V6 hexacopter

V8, I8, X8, IX8 octocopter

Recommended battery types

4S-12S LIPO battery

Supported receiver type

SBUS receiver

Supported peripherals

K-BOX, RTK, obstacle avoidance radar, terrain following radar

integrated remote transmitter, FPV camera, binocular vision sensor

System requirements for assistant software

Windows 7 /8 /10 (32 or 64 bit)

Hover accuracy

Horizontal ±1.5m , Vertical ±0.5m

Maximum tilt angle

30°

Maximum yaw speed

150°/s

Maximum vertical speed

6m/s

Maximum wind resistance

Continued wind: Level 4 , Gust: Level 5

Power dissipation

<5W

Working temperature

-10℃ ~ 60℃

Storage temperature

-25℃~60℃

Operating voltage range

FC 4.8V-5.3V

GPS&Beidou 5V

LED 5V

Colour

Black

Weight

Total net weight 114g (excluding accessories)

FC 55g

GPS 45g

LED 14g

Size

FC 57.0 × 36.0 × 22.0 mm

GPS Φ62.0 × 14.3 mm

LED 24.0 × 24.0 × 8.0 mm

Whole box weight

484g

Whole box size

256 x 176 x 55 mm

P3 Flight Controller Parameters

Supported frame types I4, X4 quadrotor
IY6, Y6, I6, V6 hexacopter
V8, I8, X8, IX8 octocopter
Recommended battery types 4S-12S LIPO battery
Supported receiver type SBUS receiver
Support peripherals K-BOX, RTK, obstacle avoidance radar, terrain following radar
integrated remote transmitter, FPV camera, binocular vision sensor
System requirements for assistant software Windows 7 /8 /10 (32 or 64 bit)
Hover accuracy Horizontal ±1.5m, Vertical ±0.5m
Maximum tilt angle 30°
Maximum yaw speed 150°/s
Maximum vertical speed 6m/s
Maximum wind resistance Continued wind Level 4, Gust Level 5
Power dissipation <5W
Working temperature -10℃ ~ 60℃
Storage temperature -25℃~60℃
Operating voltage range FC 4.8V-5.3V
GPS、Beidou 5V
LED 5V
Colour Black
Weight Total net weight 114g (excluding accessories)
FC 55g
GPS 45g
LED 14g
Size FC 57.0 × 36.0 × 22.0 mm
GPS Φ62.0 × 14.3 mm
LED 24.0 × 24.0 × 8.0 mm
Whole box weight 484g
Whole box size 256 x 176 x 55 mm
