Fully autonomous high-precision operation

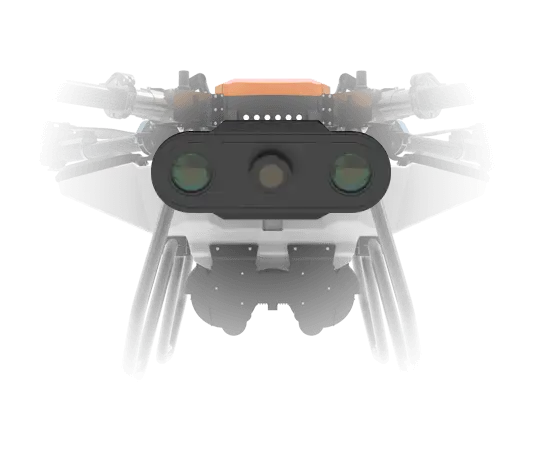

C50 is equipped with 120° FPV real-time wide-angle cameras at the front and rear, which meets the needs of operation visualization. Equipped with two high-brightness LED searchlights, it is convenient for night work; it is also equipped with an obstacle sensing module, which can predict the obstacles ahead and ensure your flight safety.

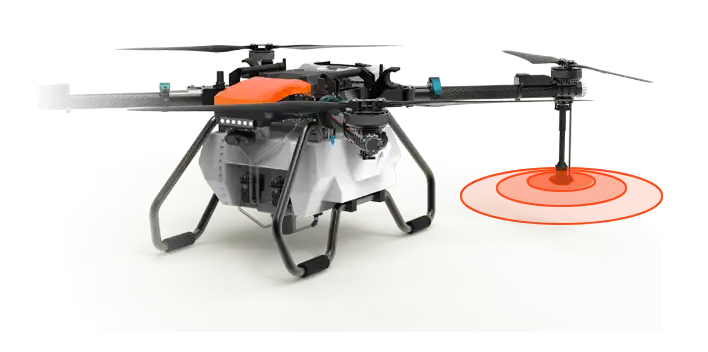

C50 adopts the design of eight nozzles and four water pumps. The flow rate of a single water pump can reach 8L/min, and the overall spraying is more uniform.

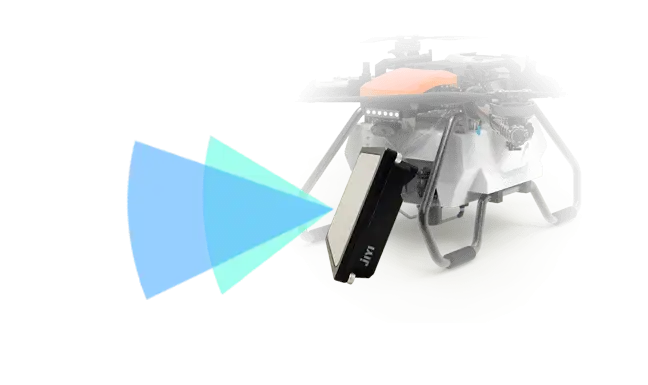

C50 adopts front and rear obstacle avoidance radar, can fly autonomously without turning it's head. It makes the flight safer.

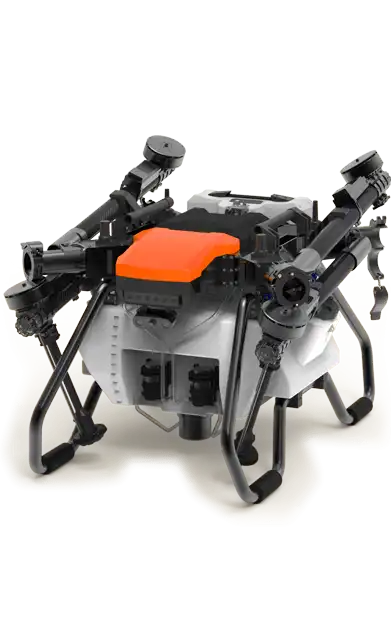

The wrap around folding structure can minimize the volume of the fuselage after folding, which is convenient for transportation and transition.

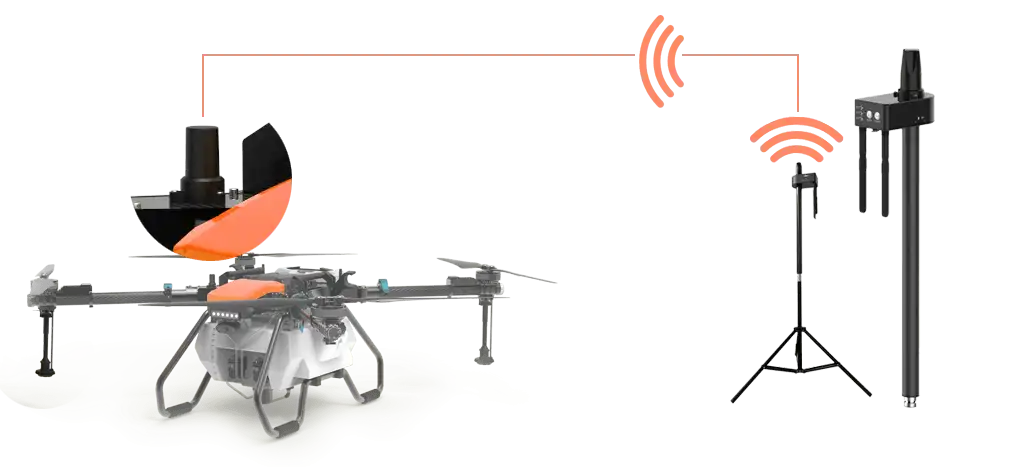

The RTK installed on the C50 has centimeter-level positioning capabilities, providing more accurate positioning and safety guarantees for aerial defense operations.
Wheelbase: 1925mm Appearance size: 1465×1475×595 mm Weight: 42 kg (incl. battery) Standard take-off weight: 92 kg Hoover accuracy: ±0.6m horizontal, ±0.3m vertical with GNSS signal (±0.1m if enable radars) ±10cm horizontal, ±10cm vertical with J-RTK Battery capacity: 18S 28000mAh (14kg of gross weight) Flight time(no load): 20.5min without payload @ 28000mAh 42kg Flight time(spray): 9min with full tank spraying @ 28000mAh 82kg Nozzle type: 2 x centrifugal nozzle equipped with air operated double diaphragm pump Spray particle size: 50~300μm Spray volume per minute: 8-10L/min Max. spray width: 10m @ flight altitude 2.5m above the plant Spray efficiency: 500 mu/hour or 202 ha/hour Max. spread width: 8m at flight altitude 4m above the plant Spread volume per minute: 70-140L/m Max. flight speed: 10m/s Max. resistance wind speed: 8m/s Max. flight altitude: 2000m Recommended working temperature: 0~40°C
JIYI is the global professional drone solution provider for drones. If you need drones, then you need us.
