6L effective capacity
G06 Your first agricultural drone
Rectangular layout
Quick release battery and tank
Foldable
Customization
6L effective capacity
Rectangular layout
Quick release battery and tank
Foldable
Customization

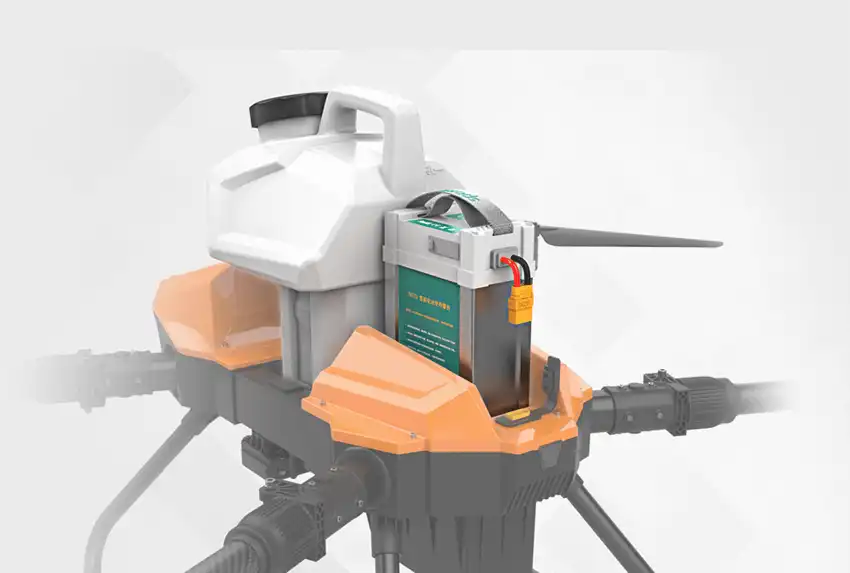

G06 adopts quick-release tank and battery design, which can realize quick dressing change, battery change, simple operation, saving time and effort.

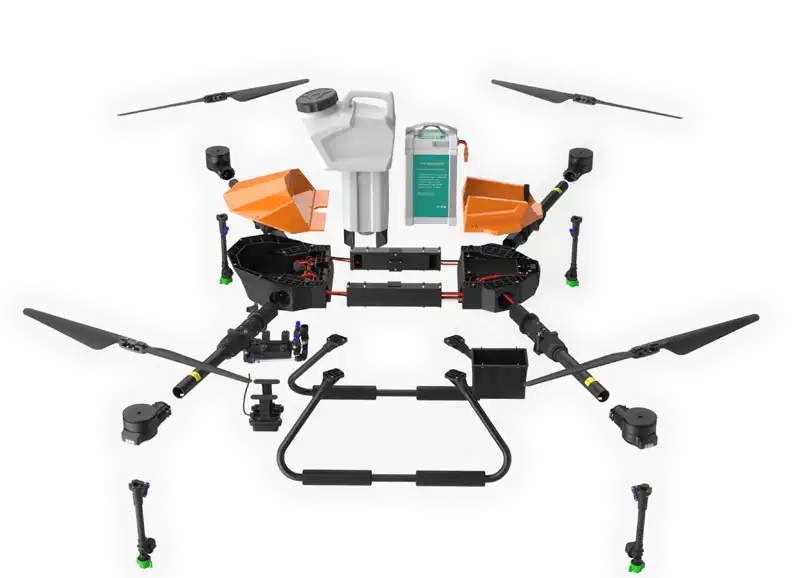

The body of the G06 adopts a modular design, and each component can be quickly disassembled and replaced for easy maintenance.
The optional extended nozzle can effectively reduce the drift of droplets. The soft silicone connection at the root can prevent the nozzle from breaking when subjected to external impact.
The G06 has reserved a altitude radar installation position, and can be equipped with millimeter wave fixed height radar to achieve a more precise height fixed height imitation effect.
The G06 can be equipped with an FPV camera to meet the visual needs of long-distance operations and make flying more assured.

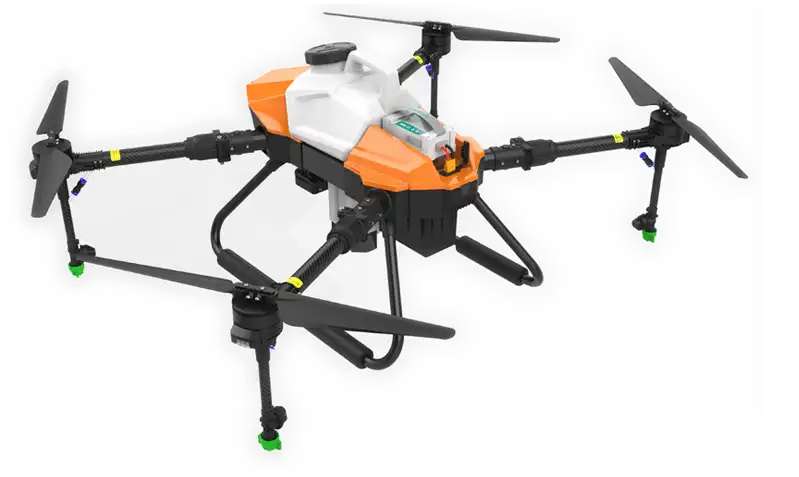

Wheelbase: 1172mm
Folded size: 605x694x475mm
Tank capacity: 6L
No-load weight: 4.8kg
Maximum take-off weight: 17.5kg
Battery: 12S
Propellers: 23-24 inches
Single-axis load: 4-5kg
Flight controller system: K3Apro
JIYI is the global professional drone solution provider for agricultural drones. Our drones have thousands of shipment and did tens of millions of acres of works already.
